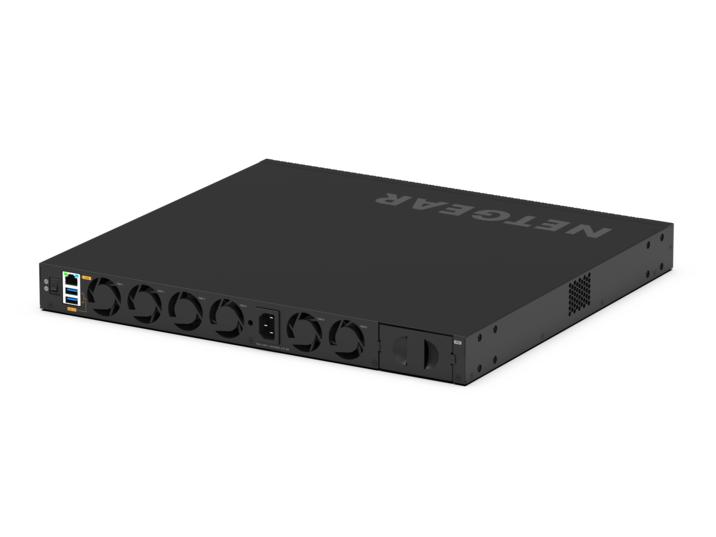

CMS_Tech_Specs_Image-XSM4344FC_P_Shadow.Rear_right1

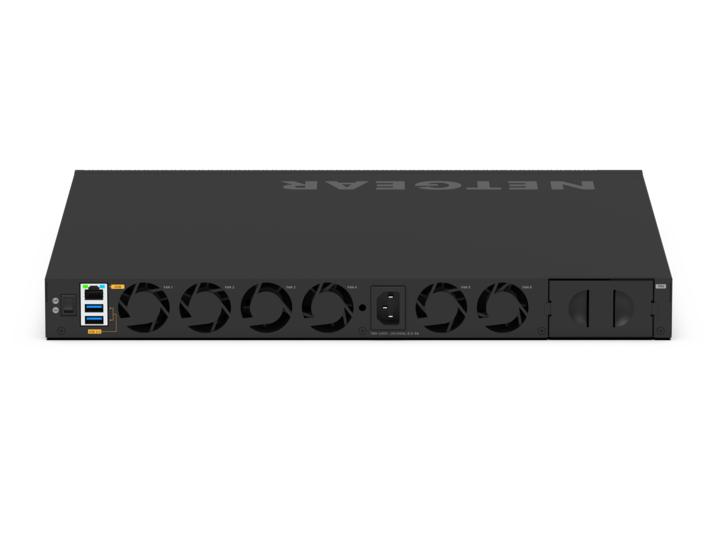

CMS_Tech_Specs_Image-XSM4344FC_P_Shadow.Rear_Tipoff

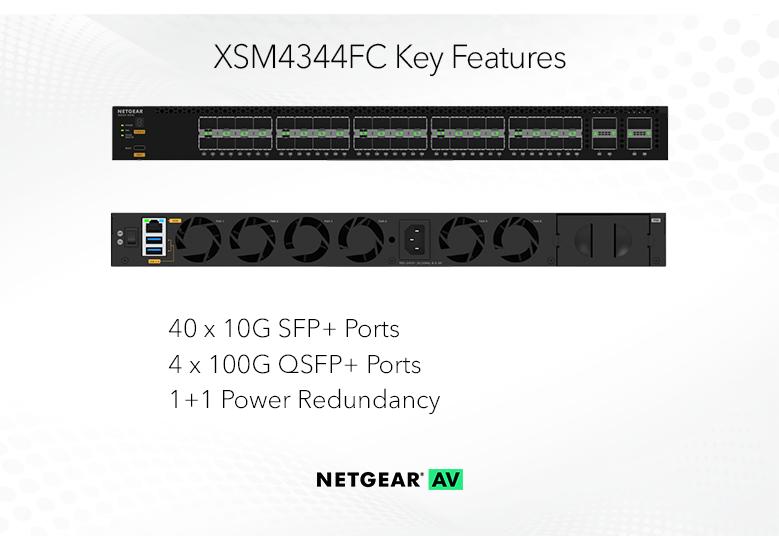

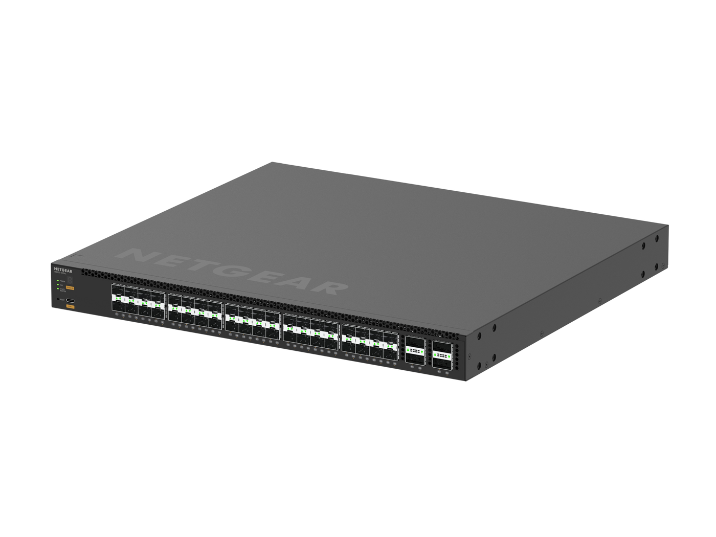

M4350-40F4C Fully Managed Switch (XSM4344FC)

40x10G SFP+ and 4x100G QSFP28 Managed Switch

40 10GBASE-X SFP+ ports with 4 100GBASE-X QSFP28 uplinks.
420W internal power supply.
1 slot for modular power supply (1+1 redundancy).
Any APS600Wv3, APS1200Wv2, or APS2000Wv2 can be used.
Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover.
Layer 3 feature set includes static, policy-based, and dynamic routing.
NETGEAR IGMP Plus™, NETGEAR AV OS, and Engage Controller speed up AV installations.
SMPTE ST 2110 Grand Master Clock and Boundary Clock for AES67 and ST2059-2 applications.
Multi-color LED on each physical port reflecting the profile color in the NETGEAR AV OS™ and Engage Controller.
NETGEAR ProSAFE^® Limited Lifetime Hardware Warranty.
Lifetime Next Business Day Hardware Replacement.

44-Port | 40x10G SFP+ | 4x100G QSFP28 | XSM4344FC

10-Port | 8x2.5G PoE++ 120W-550W | 2x25G SFP28 | MSM4310

28-Port | 24xSFP | 4x10G Copper Combo / SFP+ | MSM4328F

32-Port | 24x2.5G, 4x10G/Multi-GigPoE++ 510W-2,520W | 4x25G SFP28 | MSM4332

28-Port | 24 PoE+ 648W-720W | 24x1G | 4xSFP+ | GSM4328

52-Port | 48 PoE+ 236W-1,440W | 48x1G | 4xSFP+ | GSM4352

52-Port | 48 PoE++ 194W-3,314W | 44x2.5G, 4x10G/Multi-Gig | 4xSFP28 25G | MSM4352

16-Port | 8x10G/Multi-Gig | 8xSFP+ | XSM4316

24-Port | 12x10G/Multi-Gig | 12xSFP+ | XSM4324

28-Port | 24 PoE+ 576W-720W | 24x10G/Multi-Gig | 4xSFP28 25G | XSM4328CV

28-Port | 24xSFP+, 4xSFP28 25G | XSM4328FV

40-Port | 36 PoE++ 280W-1,760W | 36x10G/Multi-Gig | 4xSFP28 25G | XSM4340CV

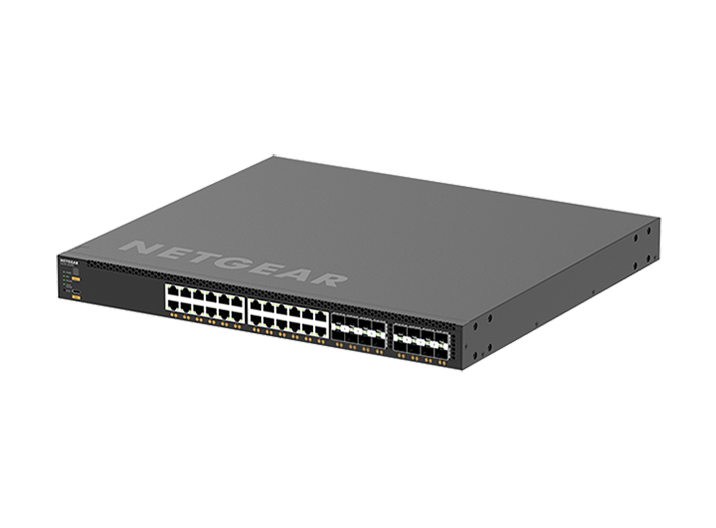

40-Port | 24 PoE++ 290W-1,770W | 24x10G/Multi-Gig | 8xSFP+,8xSFP28 25G | XSM4340V

40-Port | 32xSFP+, 8xSFP28 25G | XSM4340FV

20-Port | 16xSFP+, 4xQSFP28 100G | VSM4320C

44-Port | 40 PoE++ 196W-1,676W | 40x10G/Multi-Gig | 4xQSFP28 100G | XSM4344C

We're always here to help

Want a custom configuration?

Need to check compatibility?

Ready for a quote?

Our experts are available via online chat, phone, or email.

POWER AND
THROUGHPUT

Edge to core flexible platform, from 1 Gigabit to 100 Gigabit, good for projects of all sizes.

Groundbreaking AV GUI

A simplified user interface makes it easy to assign configuration profiles to each port.
Multicast in an Instant

NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.
Sleek, Quiet Design

Less fan noise, and mounting ears included for rack mounting.
Automatic Configuration

Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.

FAST, EASY
CONFIGURATION
FOR AV PROS

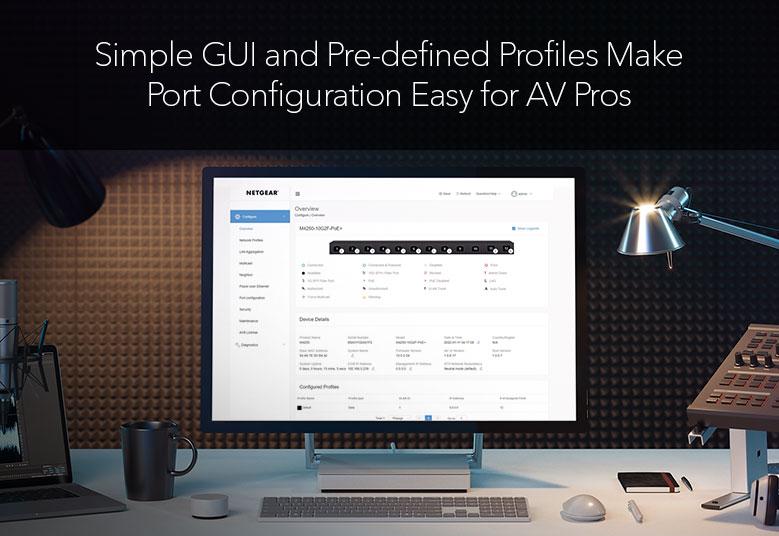

A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.

FOCUS ON THE EVENT
NOT FAN NOISE

Most models have quiet mode which greatly reduces fan noise.

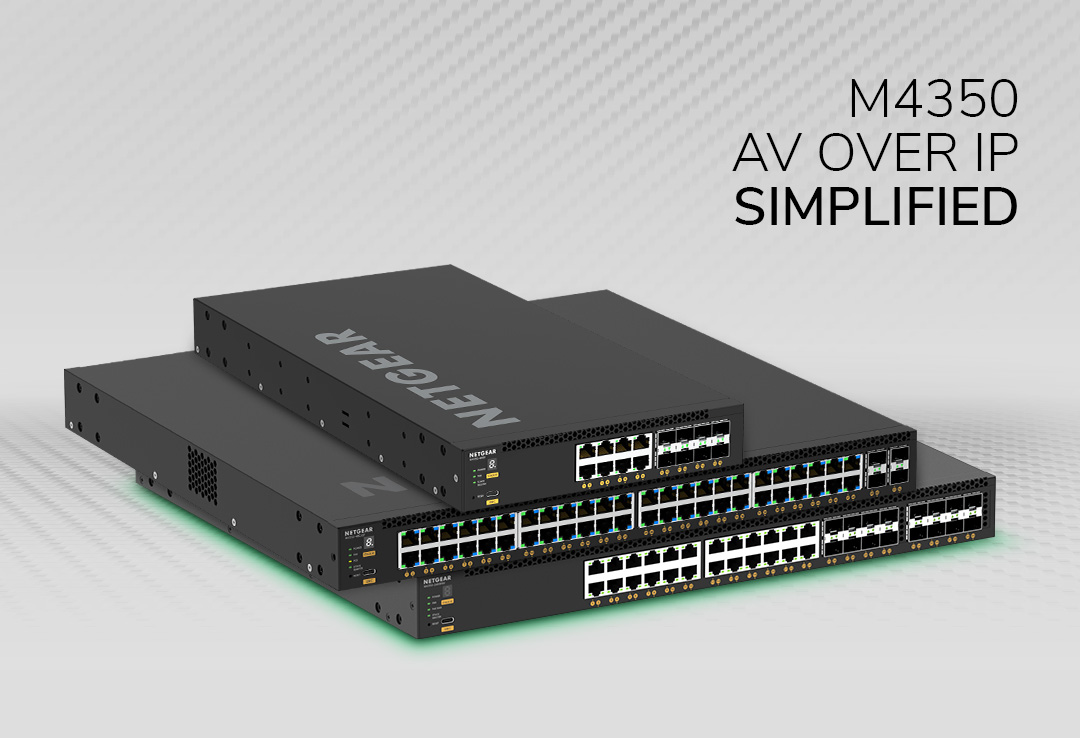

DESIGNED FOR
AV OVER IP
RIGHT OUT OF
THE BOX

With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless audio and video delivery. Enable multicasting right out of the box.

COMPARE M4350 SERIES SWITCHES

	XSM4344FC	GSM4328	GSM4352	MSM4310	MSM4332	MSM4328F	MSM4352	XSM4316	XSM4324	XSM4328CV	XSM4328FV	XSM4340CV	XSM4340V	XSM4340FV	VSM4320C	XSM4344C

# Total Ports	# Total Ports 44	# Total Ports 28	# Total Ports 52	# Total Ports 10	# Total Ports 32	# Total Ports 28	# Total Ports 52	# Total Ports 16	# Total Ports 24	# Total Ports 28	# Total Ports 28	# Total Ports 40	# Total Ports 40	# Total Ports 40	# Total Ports 20	# Total Ports 44
Port Types	Port Types 40x10G SFP+, 4x100G QSFP28	Port Types 24x 1G, 4x SFP+	Port Types 48x 1G, 4x SFP+	Port Types 8x2.5G, 2x25G SFP28	Port Types 24x2.5G, 4x10G, 4x25G SFP28	Port Types 24xSFP+, 4x10GBASE-T/SFP+	Port Types 44x 1G/2.5G, 4x 1G/2.5G/5G/10G, 4x SFP28 (25G)	Port Types 8x 1G/2.5G/5G/10G, 8x SFP+	Port Types 12x 1G/2.5G/5G/10G, 12x SFP+	Port Types 24x 1G/2.5G/5G/10G, 4x SFP28 (25G)	Port Types 24x SFP+, 4x SFP28 (25G)	Port Types 36x 1G/2.5G/5G/10G, 4x SFP28 (25G)	Port Types 24x 1G/2.5G/5G/10G, 8xSFP+, 8x SFP28 (25G)	Port Types 32x SFP+, 8x SFP28 (25G)	Port Types 16x SFP28 (25G), 4x QSFP28 (100G)	Port Types 40x 1G/2.5G/5G/10G, 4x QSFP28 (100G)
Total PoE Budget	Total PoE Budget -	Total PoE Budget 648W –> 720W	Total PoE Budget 236W -> 1,440W	Total PoE Budget 119W -> 551W	Total PoE Budget 552W -> 2,520W	Total PoE Budget -	Total PoE Budget 194W -> 3,314W	Total PoE Budget -	Total PoE Budget -	Total PoE Budget 576W -> 720W	Total PoE Budget -	Total PoE Budget 280W -> 1,760W	Total PoE Budget 290W -> 1,770W	Total PoE Budget -	Total PoE Budget -	Total PoE Budget 196W -> 1,676W
# PoE+ Ports	# PoE+ Ports -	# PoE+ Ports 24	# PoE+ Ports 48	# PoE+ Ports -	# PoE+ Ports -	# PoE+ Ports -	# PoE+ Ports -	# PoE+ Ports -	# PoE+ Ports -	# PoE+ Ports 24	# PoE+ Ports -	# PoE+ Ports -	# PoE+ Ports -	# PoE+ Ports -	# PoE+ Ports -	# PoE+ Ports -
# PoE++ Ports	# PoE++ Ports -	# PoE++ Ports -	# PoE++ Ports -	# PoE++ Ports 8	# PoE++ Ports 24	# PoE++ Ports -	# PoE++ Ports 48	# PoE++ Ports -	# PoE++ Ports -	# PoE++ Ports -	# PoE++ Ports -	# PoE++ Ports 36	# PoE++ Ports 24	# PoE++ Ports -	# PoE++ Ports -	# PoE++ Ports 40
Rack Mount	Rack Mount 1U	Rack Mount 1U	Rack Mount 1U	Rack Mount 1U	Rack Mount 1U	Rack Mount 1U	Rack Mount 1U	Rack Mount 1U	Rack Mount 1U	Rack Mount 1U	Rack Mount 1U	Rack Mount 1U	Rack Mount 1U	Rack Mount 1U	Rack Mount 1U	Rack Mount 1U
FORM FACTOR W X H x D (MM)	FORM FACTOR W X H x D (MM) 440x400x43.2	FORM FACTOR W X H x D (MM) 440 x 400 x 43.2	FORM FACTOR W X H x D (MM) 440 x 400 x 43.2	FORM FACTOR W X H x D (MM) 220x300x43.2	FORM FACTOR W X H x D (MM) 440 x 400 x 43.2	FORM FACTOR W X H x D (MM) 440 x 400 x 43.2	FORM FACTOR W X H x D (MM) 440 x 400 x 43.2	FORM FACTOR W X H x D (MM) 220 x 400 x 43.2	FORM FACTOR W X H x D (MM) 220 x 400 x 43.2	FORM FACTOR W X H x D (MM) 440 x 400 x 43.2	FORM FACTOR W X H x D (MM) 440 x 400 x 43.2	FORM FACTOR W X H x D (MM) 440 x 400 x 43.2	FORM FACTOR W X H x D (MM) 440 x 400 x 43.2	FORM FACTOR W X H x D (MM) 440 x 400 x 43.2	FORM FACTOR W X H x D (MM) 440 x 400 x 43.2	FORM FACTOR W X H x D (MM) 440 x 400 x 43.2

MAXIMIZE
PERFORMANCE
WITH PRO WIFI
ACCESS POINTS

Enable powerful, reliable WiFi at your location with Pro WiFi access points, powered by PoE or an external power adapter.

LEARN MORE

PRO AV
RESOURCES

All the resources you need to learn about NETGEAR AV over IP solutions, including family brochures, product data sheets, tech tips and more.

RESOURCES

PRO AV FAMILY COMPARISON

	M4250 SWITCH SERIES	M4350 SWITCH SERIES	M4500 SWITCH SERIES

USE CASE	USE CASE Access/Edge	USE CASE Core/Access/Edge	USE CASE Core/Access/Edge
SWITCH STACKING	SWITCH STACKING No	SWITCH STACKING Yes	SWITCH STACKING No (MLAG)
PoE CAPABLE	PoE CAPABLE Yes	PoE CAPABLE Yes	PoE CAPABLE No
PORT SPEEDS	PORT SPEEDS 1, 2.5, 10Gbps	PORT SPEEDS 1, 2.5, 10, 25, 100Gbps	PORT SPEEDS 1, 10, 25, 100Gbps
AVB SUPPORT	AVB SUPPORT Yes*	AVB SUPPORT Yes	AVB SUPPORT No
AV WEB UI / AV TEMPLATES	AV WEB UI / AV TEMPLATES Yes	AV WEB UI / AV TEMPLATES Yes	AV WEB UI / AV TEMPLATES No
AV DESIGN (FRONT LED'S & REAR CABLING)	AV DESIGN (FRONT LED'S & REAR CABLING) Yes	AV DESIGN (FRONT LED'S & REAR CABLING) No	AV DESIGN (FRONT LED'S & REAR CABLING) No

M4350-40F4C Technical Specifications

Product Specifications

M4350-40F4C (XSM4344FC)

1
Power cord(s)

1
Console USB Type-C cable

1
Rack-mounting standard bracket set

1
Set of longer brackets for recessed mounting

1
Rubber footpads for tabletop installation

4
Installation guide

1
